Square Hardware Bundle Star mC-Print3 MCP31L Ethernet Receipt Printer + Cash Drawer Combo
• Fully Refurbished Star MCP31L Ethernet Receipt Printer, Cleaned and Tested + 90 Day Warranty
• New 5 Space Bill and Coin Till Cash Drawer Box - 16.5" x 16" x 4.5" Dimensions
• Free UPS Ground Shipping to Continental USA
• Ethernet (LAN) and USB Lightning Interface Version with CloudPRNT and Peripheral Hub
• This version of the printer does not have Bluetooth. Star MCP31LB Bluetooth Printer Listing is here
• Ethernet or USB Cable, Cash Drawer Kick Cable, Set of Keys, Thermal Receipt Paper Roll Included
• Unique Print Flat technology feature
• Easy to integrate through common SDK
• USB, Lightning, LAN, CloudPRNT
• IPX2 splash-proof design
• SteadyLAN technology
• Fast charge and communication via USB-C power delivery port (mCP31C/CB)
The mC-Print3 is the mCollection‘s 3-inch POS receipt printer. Star’s compact mC-Print3 is 40% smaller than the TSP654II. The mC-Print3 provides an IPX2-rated splash-proof design, as well as front-load paper loading with exceptional functionality. This 3-inch thermal printer offers multiple connectivity options including USB, Lightning, Bluetooth, WLAN, LAN, and CloudPRNT/WebPRNT with SteadyLAN® technology. The five connections are all a part of the mC-Print3 model, making the printer adaptable to any future POS system changes. Additionally, the multiple connectivity options allow for the easy integration of common software.
Full Star MCP31LB Specifications :
| Printer Method | Direct Line Thermal |
| Print Speed | 250 mm/sec |
| Printer Case Color | White or Black |
| Models Available | USB, Lightning, Ethernet (LAN), WLAN, CloudPRNT, Bluetooth* (*mCP31LB, mCP31CBi, & mCP31WBi only) |
| Print Resolution | 203 dpi (8 dots per mm) |
| No. of Columns | Star Mode = 48 |
| Font Size | 12 X 24 |
| Character Set | ANK 95, 32 Int 128 Graphic plus Chinese, Japanese, Korean, Taiwanese |
| International Code Pages | Star Mode=48 |
| Bar Codes | Extended barcode functionality – 9 versions / PDF 417, Maxicode Option |
| Line Spacing | 3 mm or 4 mm or programmable |
| Paper Specifications | Width: 80mm standard, 58mm with paper guide
Thickness: 0.053 ~ 0.075 mm Roll Diameter: Up to 83 mm |
| Paper Load | Easy Front Loading |
| Paper Out Sensor | Standard |
| Paper Low Sensor | Standard |
| Maximum Print Width | 80mm paper = 72mm, 58mm paper = 50.8mm |
| Top Margin | 11 mm default |
| Auto-Cutter | Guillotine (Partial Cut Only) |
| Cover-Open Sensor | Yes |
| Logo Store Capacity | Unlimited |
| Label Support | N/A |
| Power Supply | External, new smaller design |
| Drivers Available | Windows 10, Windows 8.1, Windows® XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, POSReady2009, OPOS™, JavaPOS™, USB Vendor Clss, CUPS, Mac, Mac OS X, Linux™, StarPRNT SDK with support for iOS and Android |
| Digitally Signed (WHQL) | Yes |
| Swappable Interfaces | N/A |

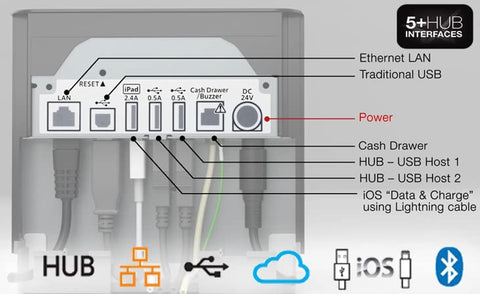

| Connectivity |
mCP30: Ethernet (LAN), USB-B, CloudPRNT

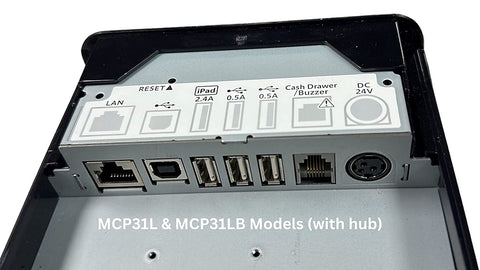

mCP31L: Ethernet (LAN), USB-B, USB-A/Lightning, CloudPRNT mCP31LBi: Ethernet (LAN), USB-B, USB-A/Lightning, CloudPRNT, Bluetooth (MFi) mCP31C: Ethernet (LAN), USB-C Power Delivery for Android, Windows and Mac (not iOS), CloudPRNT mCP31CB: Ethernet (LAN), USB-C Power Delivery for Android, Windows and Mac (not iOS), CloudPRNT, Bluetooth mCP31W: WLAN, USB-A/Lightning, CloudPRNT mCP31WBi: WLAN, USB-A/Lightning, CloudPRNT, Bluetooth (MFi) |
| Emulation Modes |
Star Mode
SDKs (Raster only)TM |
| Peripheral Drive Circuit | 2 circuits, (24V max. 1A), 1 compulsion input |
| Power Consumption | Average 1.6 Amp. Printing, 0.1 Amp. Standby |
| Operating Conditions |
Temperature: 5oC to 45oC
Humidity: 10% – 90% RH (without condensation) |
| Storage Conditions |
Temperature: -20oC to 60oC
Humidity: 10% – 90% RH |
| Dimensions | 132 x 140 x 125mm (w x h x d) |
| Safety Standards | UL, C-UL, TuV, FCC, VCCI, EN55022, CE |
|
Reliability MCBF
Print Head Auto Cutter |
60 Million Lines
100km 2 Million Cuts |
| Accessories | mG-S322, mG-S1501, mG-S8200, 2D Barcode Scanners/Imagers, Line Display, Kitchen Buzzer, Cash Drawer |
