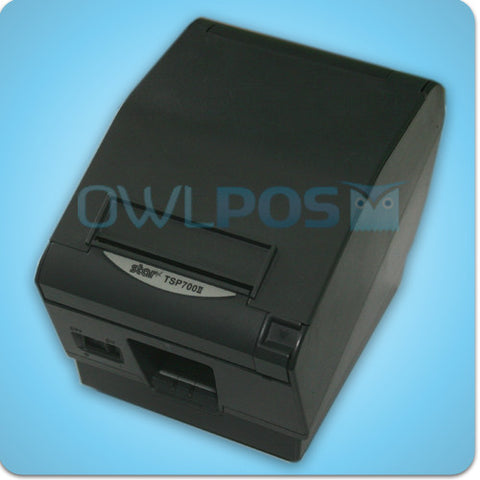

Star Micronics TSP700II Thermal USB POS Receipt Printer TSP743IIU Dark Gray Refurb

Printer Method

Direct Line Thermal

Print Speed

48 Receipts Per Minute (250 mm/sec)

Printer Case Color

Putty or Gray

Model Available

Auto Cutter Only

Print Resolution
(Vertical x Horizontal)

203x203 dpi, 406x203 dpi

No. of Columns

48 / 64 or 58 / 71 (Depends on Paper Width)
Includes 1st column print for lottery applications

Font Size

12 x 24

Character Set

ANK 95, 32 Int 128 Graphic

International Code Pages

Star Mode=40. ESC/POS™= 6 + 1 blank allowing an additional character page to be added

Bar Codes

9 versions / PDF417, QR, Maxicode Options

Line Spacing

3 mm or 4 mm or programmable

Paper Specifications
Width

Thickness
Roll Diameter
Easy-Load
Paper Out Sensor
Black Mark Sensor
Paper Low
Maximum Print Width

80mm standard, 82.5 and 58mm with paper guide

0.065 ~ 0.15 mm
Up to 100 mm
"Drop-In & Print"
Standard
Standard
Standard
80mm paper = 72mm, 82.5mm paper = 80mm, 58mm paper = 52mm

Top Margin

13 mm minimum default (3mm selectable via Memory Switch Utility)

External Paper Feed Support

Yes

Auto Cutter

Guillotine (Full or Partial Cut Selectable)

Cover Open Sensor

Yes

Logo Store Capacity

2 Mbit Flash ROM with Graphic Management Software

Flash ROM

16 Mbit

Multiple Copy Support

N/A

Journal Capability

N/A

Label Support

Yes; Black timing marks between labels required

Power Supply

External; Requires PS60A External Power Supply

Drivers Available

Windows 10, Windows 8.1, Windows® XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, POSReady 2009, OPOS™, JavaPOS™, USB Vendor Class, Linux™, Mac OS X, StarIO SDK with support for iOS and Android

Digitally Signed (WHQL)

Yes

Swappable Interfaces

Yes

Connectivity

Apple MFi Certified Bluetooth, WebPRNT, WebPRNT Browser App, Serial, Parallel, USB, Powered USB, Ethernet, Virtual Serial Port to USB, Virtual Serial Port to Ethernet

Emulation Modes

Star Mode, ESC/POS™

Peripheral Drive Circuit

2 circuits, (24V max. 1A), 1 Compulsion input

Power Consumption

Average 1.8 Amp. Printing, 0.15 Amp. Standby
Requires PS60A External Power Supply

Operating Conditions

Temperature: 5ºC to 45ºC
Humidity: 10% - 90% RH (without condensation)

Storage Conditions

Temperature: -20ºC to 60ºC
Humidity: 10% - 90% RH

Dimensions
Weight

147 x 148 x 213 (w x h x d)mm
1.75 kg

Safety Standards

UL, C-UL, TüV, FCC, VCCI, EN55022, CE, Gost

Reliability MCBF
Auto Cutter

60 Million Lines
2 Million Cuts

Options

External Power Supply (PS60A)
Splash Proof Cover (SPC-T700)
Kitchen Buzzer (BU01-24-A)
Vertical Stand (VS-T700)
Swappable Interfaces
24V Mobile Power Supply
Extend-A-Star Extended Warranty Program (US and Canada)
Swap-A-Star Extended Warranty Program (US)
