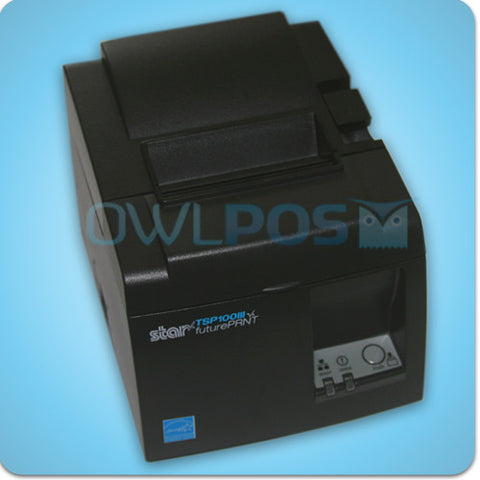

Star TSP100III FuturePRNT Thermal Receipt Printer TSP143IIIW Wireless Wifi
• Free UPS Ground Shipping to Continental USA
• Wireless Wifi Interface, "Push n Connect" WPS Connection
• Square Register and Shopify POS Compatible Receipt Printer
• High-Speed Printing at 43 Receipts per Minute (250mm/s)
• USB Type A Connector to power tablet or mobile devices
• iOS Compatible Thermal Receipt Printer for POS Apps
• Compatible with AllReceipts™ digital receipt app
• Also Compatible with Touch Bistro, PayPal Here, Shopkeep and many others
• Receipt Autocutter Installed, Dark Gray Case Color
• Power Supply Built in, Power Cord Included, interface cables sold separately
Full Star TSP143IIIW Specifications :
|
Printer Method |
Direct Line Thermal |
|
Print Speed |
43 RPM (Receipts Per Minute) |
|
Printer Case Color |
Ultra White or Dark Gray |
|
Models Available |
Auto-Cutter with Emergency tear bar on the front guide |
|
Print Resolution |
203 dpi (8 dots per mm) |
|
No. of Columns |
Star Mode = 40, ESC/POS™ Font A 42 Font B 64 |
|
Font Size |
12 x 24 |
|
Character Set |
ANK 95, 32 Int 128 Graphic plus Chinese, Japanese, Korean, Taiwanese |
|
International Code Pages |
Star Mode=40. ESC/POS™= 10 + 1 blank allowing an additional character page to be added |
|
Bar Codes |
Extended barcode functionality - 9 versions / PDF 417, Maxicode Option |
|
Line Spacing |
3 mm or 4 mm or programmable |
|
Paper Specifications |
|
|
Top Margin |
11 mm default |
|
Auto Cutter |
Guillotine (Partial Cut Only) |
|
Cover Open Sensor |
Yes |
|
Logo Store Capacity |
Unlimited |
|
Multiple Copy Support |
Supported through futurePRNT Software |
|
Journal Capability |
Supported through futurePRNT Software |
|
Label Support |
N/A |
|
Power Supply |
Internal with power cable supplied |
|
Drivers Available |
Windows 10, Windows 8.1, OPOS™, JavaPOS™, CUPS, MAC, Linux™, StarPRNT SDK with support for iOS and Android |
|
Digitally Signed (WHQL) |
Yes |
|
Swappable Interfaces |
N/A |
|
Connectivity |
TSP100IIIW
TSP100IIIBI TSP100IIILAN - Ethernet (10/100BaseT, UTP) with cable supplied Virtual Serial Port to USB - Supported throughfuture PRNT Software (TSP100, TSP100PUSB, TSP100LAN) Virtual Serial Port to LAN - Supported through futurePRNT Software (TSP100LAN) |
|
Emulation Modes |
Star Mode, ESC/POS™ (Driver only) |
|
Peripheral Drive Circuit |
2 circuits, (24V max. 1A), 1 Compulsion input |
|
Power Consumption |
Average 1.6 Amp. Printing, 0.1 Amp. Standby |
|
Operating Conditions |
Temperature: 5ºC to 45ºC |
|
Storage Conditions |
Temperature: -20ºC to 60ºC |
|
Dimensions Weight: Auto Cutter Models Tear Bar Models |
142 x 132 x 204 (w x h x d)mm |
|
Safety Standards |
UL, C-UL, TüV, FCC, VCCI, EN55022, CE |
|
Reliability MCBF |
60 Million Lines |
|
Options |
Splash Proof Cover (SPC-T100) |
